Unveiling the Secrets of Ultrasonic Levitation's Lesser-Known Form
In the realm of ultrasonic levitation, a fascinating phenomenon has emerged that challenges our conventional understanding. This lesser-known form, discovered by [Bob Collins] during torpedo guidance system research, showcases a unique interaction between ultrasonic transducers and smooth surfaces.
The Discovery

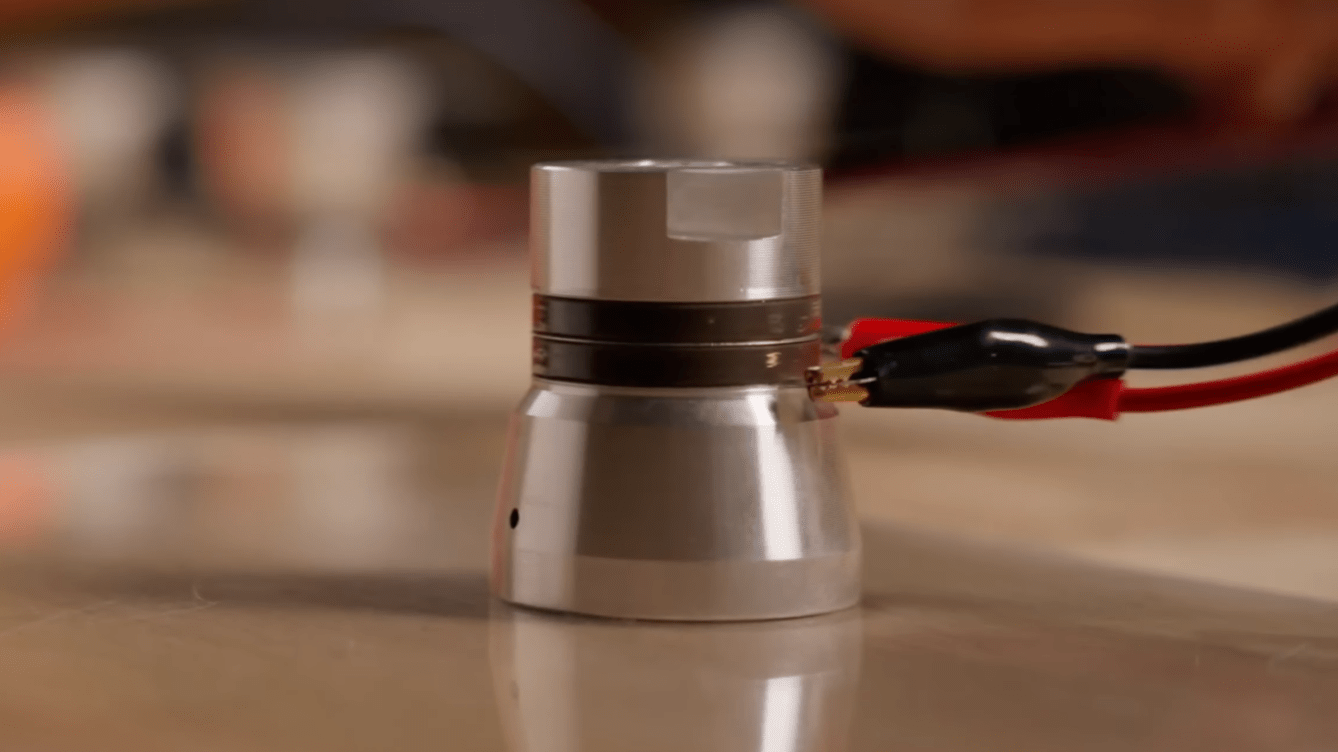

Imagine a glass lens defying gravity, sliding off an ultrasonic transducer. This intriguing observation led [Collins] to further explore the potential of ultrasonic levitation. Through experimentation, he uncovered a remarkable ability: ultrasonic transducers can levitate over any sufficiently flat and smooth surface, creating a thin layer of air between them.
The Science Behind It
The process is intricate. When the transducer moves towards the surface, it compresses air, forcing some out. Conversely, during the pull-back motion, air is drawn in. The key lies in the imbalance created during the downstroke, where the gap for air escape is narrower, leading to increased surface-induced drag. At a specific distance, inflow and outflow reach equilibrium, resulting in the transducer floating on a thin air cushion.
[Steve Mould]'s Air Hockey Innovation
[Steve Mould] took this concept further with his ultrasonic air hockey table. By oscillating the floor and levitating the pucks, he created a unique gaming experience. The challenge was to prevent the pucks from getting stuck on node lines, which he overcame by using two transducers driven out of phase, minimizing dead spots and creating a standing wave.
Applications and Variations
Ultrasonic levitation has found its way into various projects. From simple electronics kits to powering volumetric displays and photography stations, its versatility is evident. However, [Steve Mould]'s air hockey table stands out for its innovative use of ultrasonic transducers to create a dynamic and engaging gaming environment.
Final Thoughts
This lesser-known form of ultrasonic levitation opens up exciting possibilities. It showcases the potential for creating unique, interactive experiences and highlights the importance of exploring unconventional applications of technology. As we continue to push the boundaries of what's possible, who knows what other hidden gems we'll uncover in the world of ultrasonic levitation?
